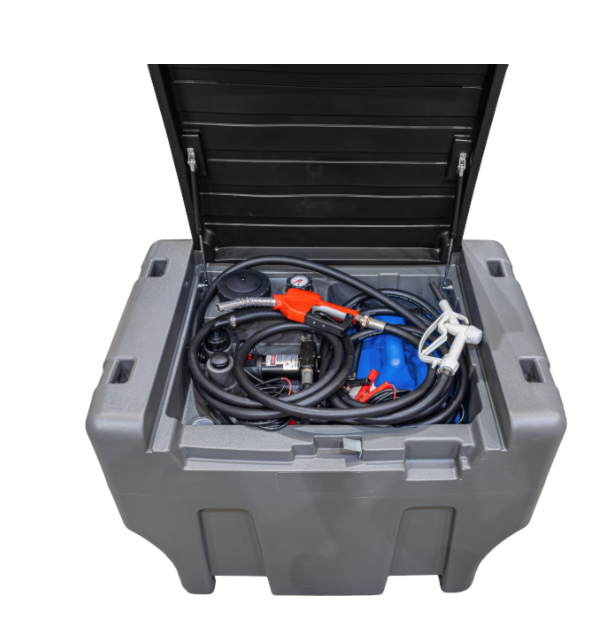

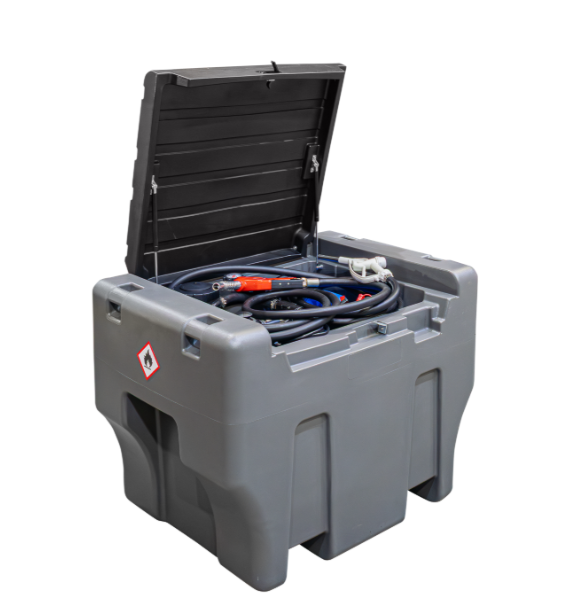

400L Diesel & AdBlue® Combo Ute Tank (DD400+50)
The Southern Blue Diesel & AdBlue® Combo Tank (DD400+50) is a heavy-duty, dual-compartment storage and dispensing solution designed for transport operators, agricultural businesses, civil contractors and mobile service teams.
Featuring a 400L diesel compartment and a separate 50L AdBlue® tank, this compact unit allows operators to transport and dispense both fluids conveniently from one system. Each compartment is equipped with dedicated transfer equipment to help prevent cross-contamination and support efficient on-site refuelling.
Manufactured with robust 6.5mm thick walls, the Diesel & AdBlue® Combo Tank is designed for demanding working environments. Its compact cube design, lockable lid and integrated air vent filling system provide a practical solution for businesses requiring reliable mobile fuel and AdBlue® storage.
Key Features
-
Dual-compartment storage: 400L diesel + 50L AdBlue®
-
Heavy-duty construction with 6.5mm wall thickness
-
Compact cube design for efficient transport and storage
-
Lockable lid for added security
-
2-inch filling plugs with integrated air vent valves on both compartments
-
In-line filters fitted to both diesel and AdBlue® systems
-
Integrated level gauge for the diesel compartment
-
Separate transfer systems for diesel and AdBlue®
Transfer System
Diesel:
-
12V DC transfer pump (DP40012)
-
Flow rate: 40L/min
-
5m diesel delivery hose (3/4-inch NBR)
-
Automatic diesel dispensing nozzle
AdBlue®:
-
12V diaphragm pump
-
Flow rate: 17L/min
-
4m AdBlue® delivery hose
-
Manual AdBlue® dispensing nozzle
Power Connection:
-
4m battery cable with clamps for convenient 12V connection
Technical Specifications
| Specification | Details |
|---|---|
| Diesel capacity | 400L |
| AdBlue® capacity | 50L |
| Overall dimensions (L × W × H) | 1,160 × 820 × 860mm |
| AdBlue® compartment dimensions | 570 × 380 × 450mm |
| Empty weight | Approx. 62–68kg, depending on configuration |
| Construction | 6.5mm wall thickness |
Optional Upgrades
-
Digital diesel flow meter (AFM30D)
-
Diesel water separator filter
